SPECIFICATIONS

Model

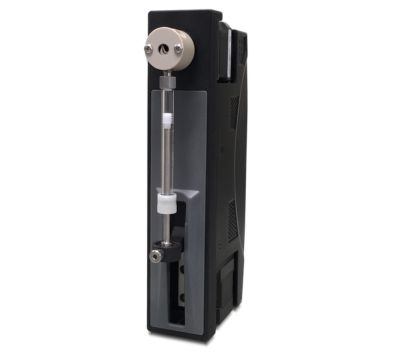

CX6000 Syringe Pump

CX48000 Syringe Pump

Stroke Speed

1.2 seconds to 100 minutes per stroke (800 min in microstep mode)

Standard mode 3,000 steps, Hi-Res mode 24,000 steps

Step Resolution

Standard mode 6,000 steps,

Hi-Res mode 48,000 steps

Standard mode 48,000 steps,

Hi-Res mode 384,000 steps

Drive Design

Direct drive stepper motor/leadscrew

with 60 mm of travel.

Direct drive stepper motor/leadscrew with

60 mm of travel.

Valve Options

120° 3-port, 90° 4-port, T-valve, 90° 3 way Distribution.

Body materials PEEK or PCTFE, Rotary Plug PTFE or UHMWPE

Interface Type

RS232, RS485 or CAN

Communication Rates

RS232/RS485 9600 or 38400 baud

CAN - 100K, 125K, 250K, 500K, 1M bps

Format (RS232/RS485)

Data Bits - 8, Parity - None, Stop Bit - 1

Half Duplex, Data Terminal and OEM protocols

Operating Temperature and Humidity

10°C to 40°C (50°F to 104°F) and 20% to 80% RH at 40°C (104°F), non-condensing

Non-Operating Temperature and Humidity

-25°C to 60°C (-13°F to 140°F) and 20% to 80% RH at 40°C (104°F), non-condensing

Media Temperature

15°C to 40°C (59°F to 104°F)
